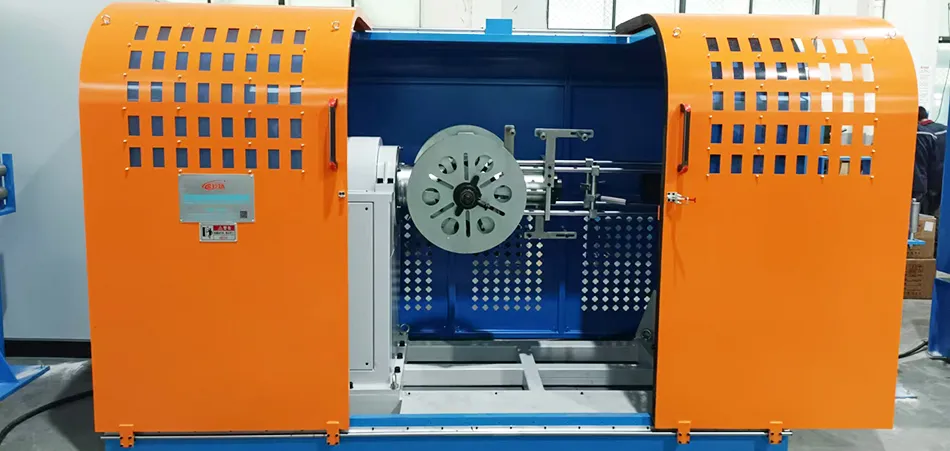

Armouring Machines
The armouring machine is used in the manufacturing of power cables, control cables, and communication cables to apply protective metal armor. By winding steel tape around the cable, it enhances mechanical strength, compressive resistance, rodent protection, and overall durability. The metal armoring layer also provides partial magnetic shielding, reducing low-frequency electromagnetic interference and improving signal stability for sensitive cable applications.
Technical Specifications
| Model | Belt Width (mm) | Belt Specifications (mm) | Number of Reels | Passing Hole Diameter (mm) | Max. Speed of Steel Strip Head (rpm) | Steel Strip Pitch (mm) | Thickness of Steel Strip (mm) |
| 30-50 | ⌀630 | 2 | ⌀120 | 350 | 8-195 | ≤0.4 | |
| 5-25 | ⌀710 | 2 | ⌀100 | 333 | 8-195 | ≤0.2 | |
| 30-60 | ⌀800 | 2 | ⌀130 | 350 | 8-195 | ≤0.4 |
Deyang XDG is dedicated to the design and manufacture of cable and wire machinery, from metal rod continuous casting and rolling to wire drawing, stranding, cabling and extrusion. Beyond supplying wire and cable production equipment, we specialize in providing complete solutions to help global wire and cable manufacturers improve production efficiency and reliability. Our equipment including CCR lines, wire drawing machines, stranding machines, cabling machines as well as auxiliary equipment such as take-up units and cable packing machine is widely utilized in the production of power transmission cables, electrical conductors, communication cables, photovoltaic cables, and more.
