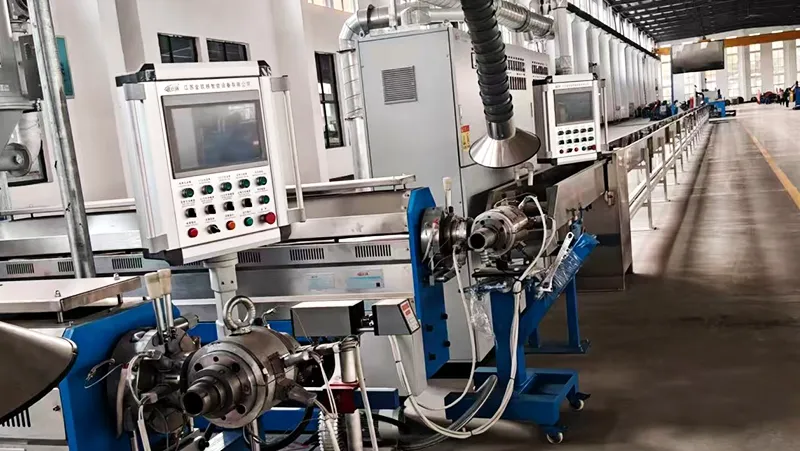

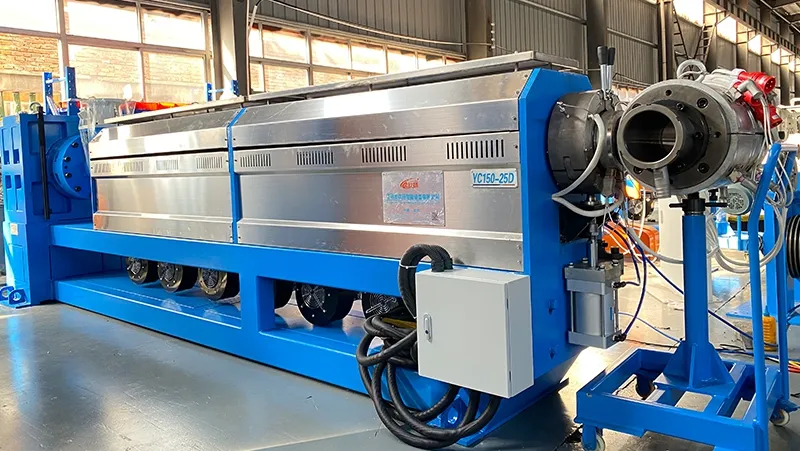

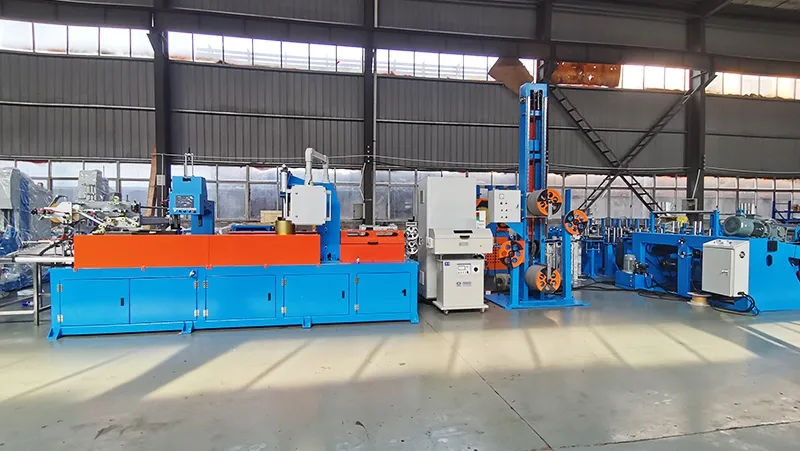

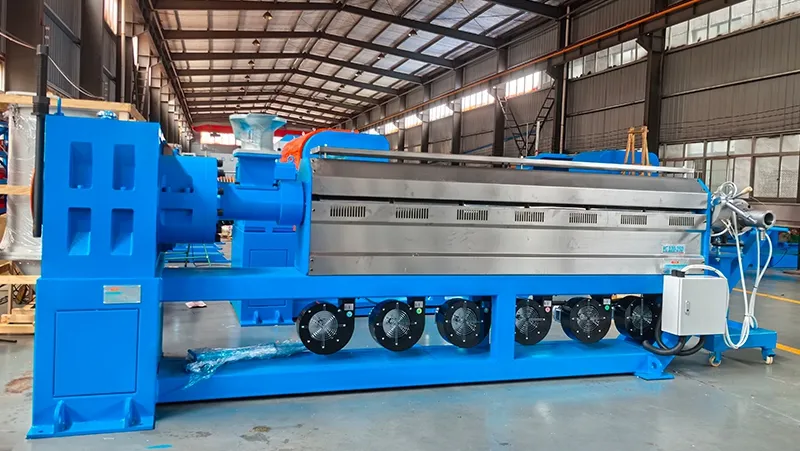

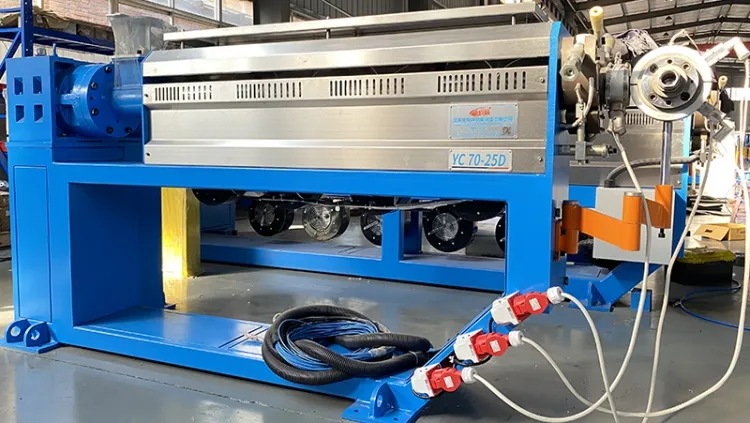

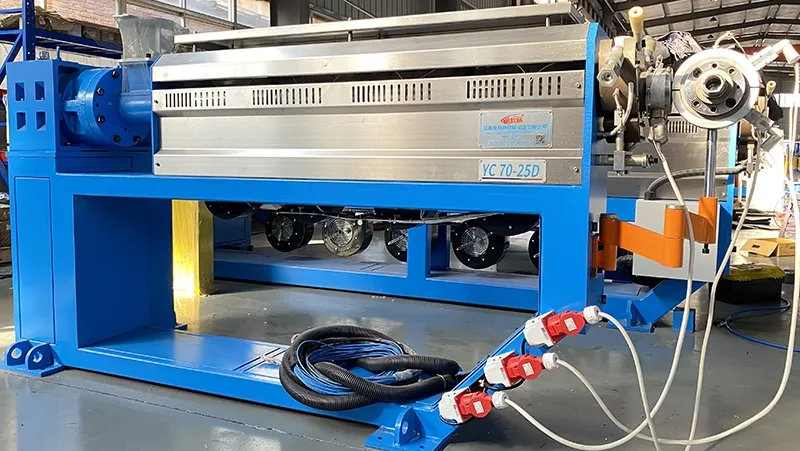

Cable Insulation Extrusion Line
The cable insulation extrusion line is used to apply plastic insulation and sheathing to a wide range of wires and cables. Suitable for PVC, PE, and LSZH materials, the line supports high-speed production while maintaining consistent product quality. Plastic material is heated, melted, mixed, and pressurized by the rotating screw before being formed through the extrusion die to create a uniform insulation or sheath layer.
Technical Specifications
| Model | |||||
| Screw Diameter (mm) | ⌀50 | ⌀70 | ⌀90 | ⌀120 | ⌀150 |
| Screw Speed (rpm) | 150 | 150 | 110 | 90 | 70 |
| PVC Extrusion Volume (kg/h) | 130 | 200 | 400 | 600 | 950 |
| PE Extrusion Volume (kg/h) | 60 | 110 | 240 | 390 | 600 |
Features
- Remote monitoring and control through mobile devices for greater operational flexibility.
- Real-time calculation of energy consumption and material costs, helping manufacturers improve production visibility and cost control.
- Intelligent pay-off and take-up systems eliminate manual reel loading and unloading, reduce machine preparation time, and improve overall production efficiency.
- Seamlessly integrates with AGV forklifts, intelligent transfer systems, and other automated handling equipment to support smart factory operations.
- Compatible with ERP, MES, and other production management systems for connected and data-driven manufacturing.
