Copper Rod CCR Line
Copper Continuous Casting and Rolling Line
(4+8 Rolling Stands)
Copper continuous casting and rolling lines are used to produce bright copper rods for wire and cable manufacturing. Materials such as copper cathodes, clean copper scrap, or other suitable copper materials enter the melting system and form molten copper, which is then cast into a copper bar and rolled directly into finished rod. The finished rods are typically Ø8–12 mm and are used as conductor material for low-oxygen copper rod or oxygen-free copper rod production.
Technical Specifications
| Model | Casting Cross-Section (mm²) | Rod Diameter (mm) | Final Rolling Speed (m/s) | Output (t/h) | Number of Rolling Stands | Coil Weight (kg) |
| XDG2100+255/4+8T | 2340 | Ø 8 | 9.5 | Approx. 17 | 12(4+8) | 2000~5000 |
Main Configuration
Standard Configuration
- Casting Machine
- Front Traction Positioning Machine
- Rotary Shear
- Straightening and Chamfering Machine
- Surface Roughening Machine
- Continuous Rolling Mill
- Cleaning And Reduction Unit

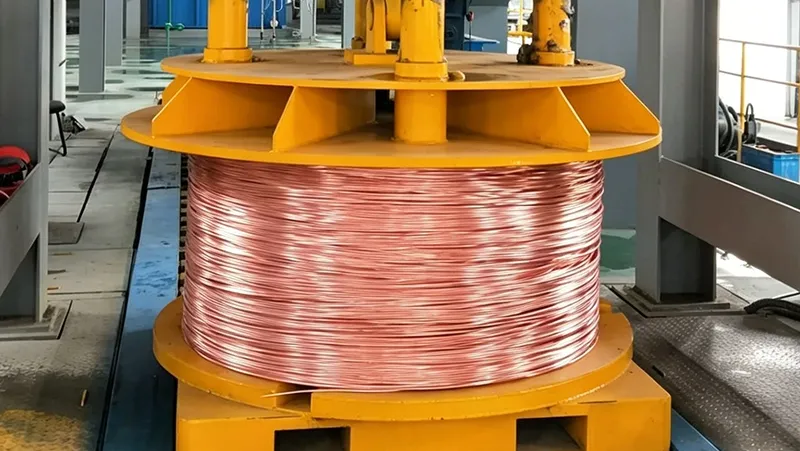

- Rosette Coiler or Spiral Coil Take-Up System
- Gearbox Lubrication System
- Emulsion Cooling System
- Electrical Control System
Optional Equipment

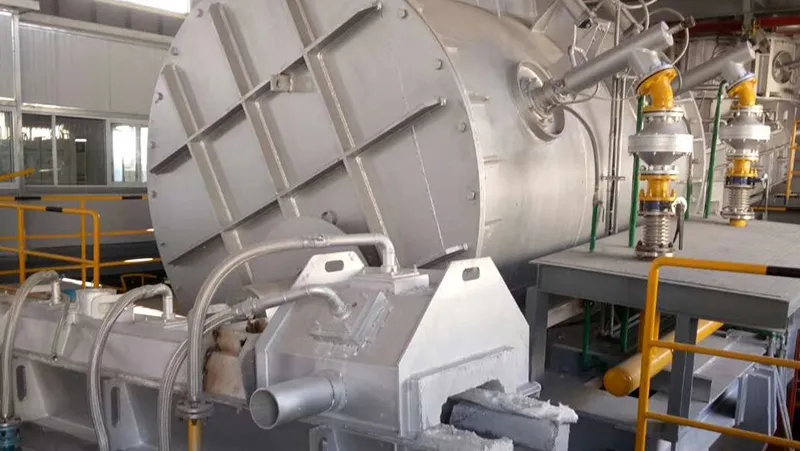

- Copper Melting Furnace, Vertical Furnace or Reverberatory Furnace
- Holding Furnace
- Rolling Rolls (made of H13)
- Hydraulic Rod Take-Up System
Production Process Flow
- Material Feeding and Melting
Copper cathodes / clean copper scrap → melting furnace → molten copper - Holding and Refining
Molten copper → holding furnace → degassing → slag removal → minor composition adjustment → temperature control - Launder Transfer and Melt Conditioning
Molten copper → launder system → filtration → impurity removal → stable temperature control - Continuous Casting

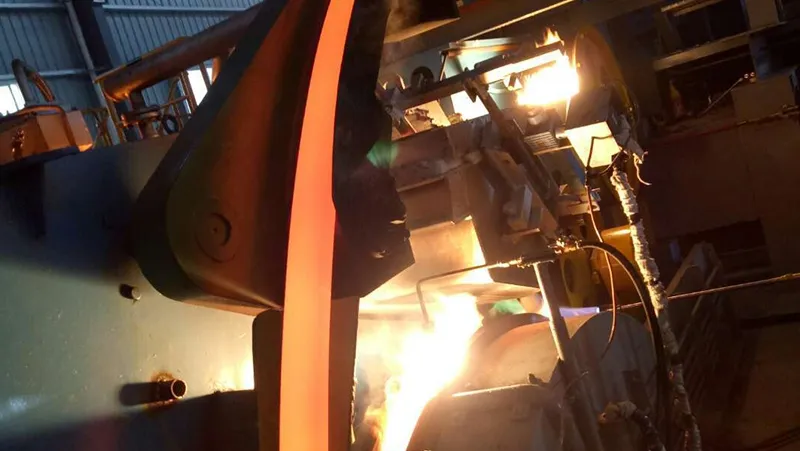

Molten copper → crystallizer → water-cooled forming → continuous copper cast bar - Continuous Rolling
Hot copper cast bar → multi-stand rolling mill → copper rod rolled to the required diameter - Cooling and Surface Cleaning
Rolled copper rod → cooling → surface oxide and oil residue removal - Inspection and Rod Treatment
Copper rod → diameter checking → surface inspection → straightening → air drying - Automatic Coiling
Finished copper rod → automatic coiling into large coils → weighing → packing - Finished Rod Storage
Low-oxygen copper rod/oxygen-free copper rod → final inspection → storage
Features
- Cast bars enter the rolling mill directly without reheating, reducing energy use, saving floor space, and lowering labor intensity.
- The crystallizing wheel uses four-side cooling with separate inner, outer, and side zones; adjustable water flow and pressure display ensure uniform cooling and fine grain structure.
- Five-wheel integrated casting machine simplifies installation, alignment, and on-site adjustment.
- Equipped with an emergency handling system that protects the crystallizing wheel during unexpected shutdowns or power loss.

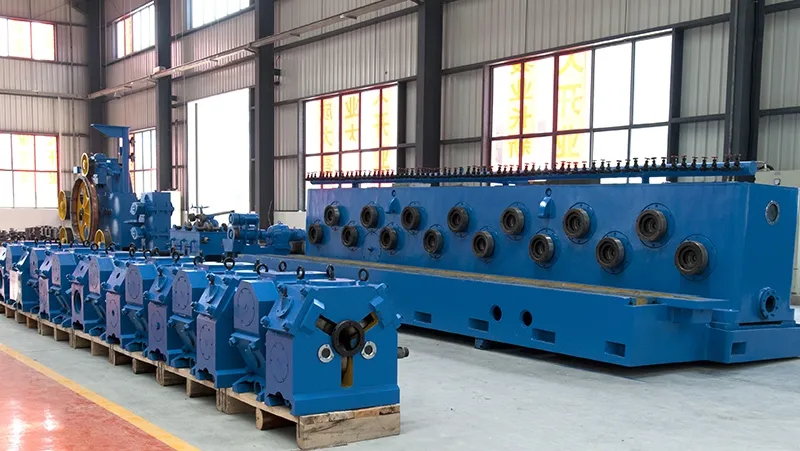

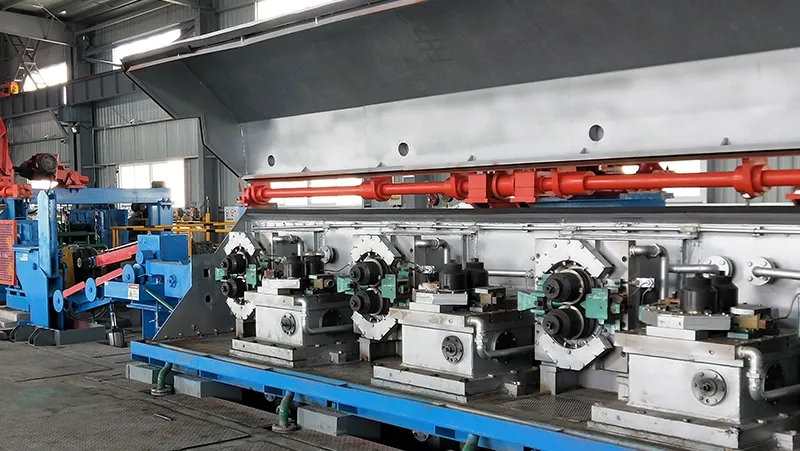

- The rolling mill layout is as follows: first four stands are two-roll, followed by eight Y-type three-roll stands for consistent rod forming.
- The cleaning and reduction unit controls the rod surface brightness and temperature after rolling.
- Digital control system with DC speed control, PLC programming, measurement, fault display, and HMI monitoring allows real-time tracking and adjustment of production status.
Deyang XDG is dedicated to the design and manufacture of cable and wire machinery, from metal rod continuous casting and rolling to wire drawing, stranding, cabling and extrusion. Beyond supplying wire and cable production equipment, we specialize in providing complete solutions to help global wire and cable manufacturers improve production efficiency and reliability. Our equipment including CCR lines, wire drawing machines, stranding machines, cabling machines as well as auxiliary equipment such as take-up units and cable packing machine is widely utilized in the production of power transmission cables, electrical conductors, communication cables, photovoltaic cables, and more.
