Copper Rod CCR Line

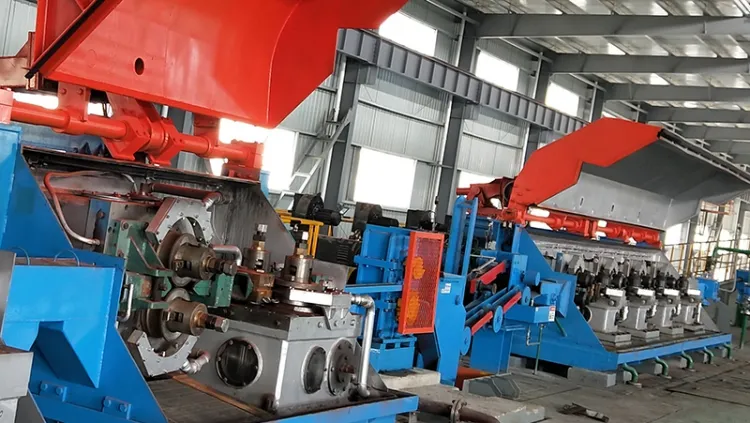

Copper Continuous Casting and Rolling Line
(2+8/3+8/3+10 Rolling Stands)

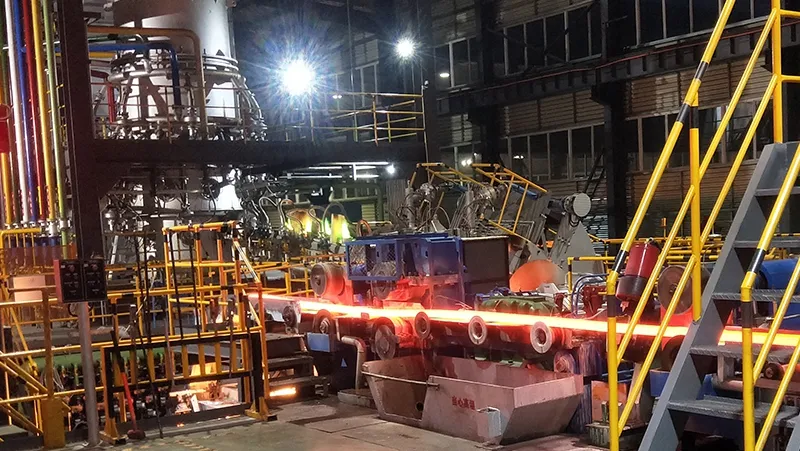

Copper rod CCR lines produce copper rods for wire, cable, electrical components, and new energy applications. Molten copper enters the casting section and forms a solid cast bar, then moves into the rolling mill before it cools down. The rolling mill reduces the cast bar into finished copper rod with the required diameter, helping factories produce high-conductivity and high-strength conductor material in a shorter, more efficient production flow.
Technical Specifications
| Model | Casting Cross-Section (mm²) | Rod Diameter (mm) | Output (t/h) | Number of Rolling Stands |
| XDGΦ8-406+305+203/11B | 3800–7100 | Ø8 | 20–45 | 2+8, 3+8, 3+10 |
Main Configuration

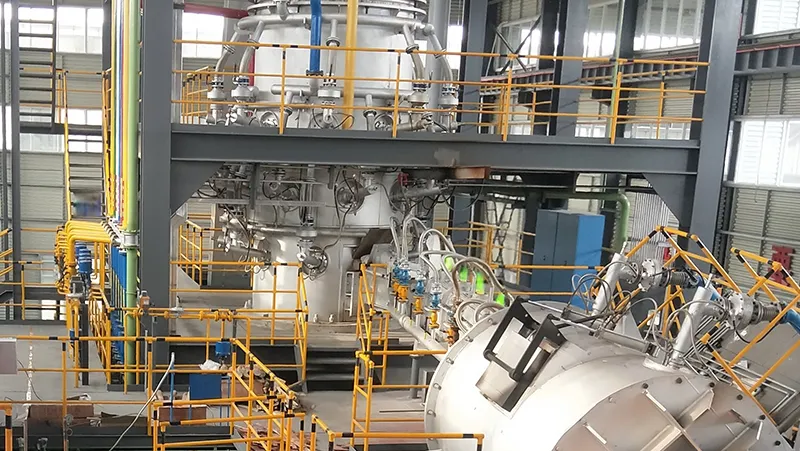

- Shaft Furnace
- Casting Machine
- Front Traction Positioning Device
- Rotary Shear
- Straightening and Chamfering Machine
- Deburring Machine
- Roughing Mill
- Finishing Mill
- Quenching Unit
- Hydraulic Coiler
- Lubrication System
- Cooling and Lubrication System
- Electrical Control System
Production Process Flow
- Furnace feeding
- melting
- upper launder
- slag skimming trough
- holding furnace
- lower launder

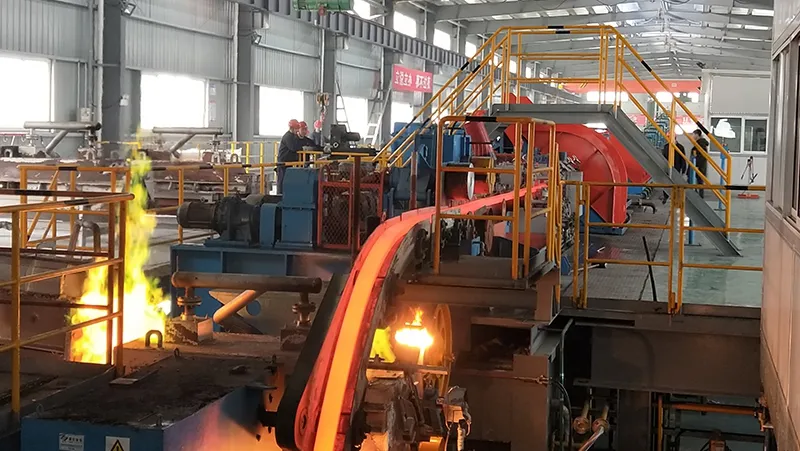

- continuous casting into cast bar
- front traction positioning
- cast bar treatment, including rotary shearing, unloading, straightening, corner shaving, and surface roughening
- pinch rolls
- roughing mill
- finishing mill
- copper rod cooling and surface reduction
- waxing
- continuous rod coiling
- concentric coil take-up
- finished product
